Buttons are an incredibly important widget to understand since your app will undoubtedly contain them.

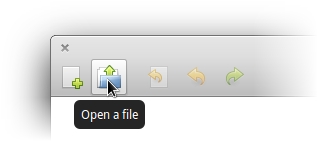

Tool Buttons

Open button

Labeling

Tool Buttons are almost always icon-only and do not provide a button border. They should not be accompanied by a label.

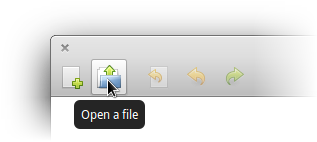

Tooltips

Like text button labels, a tooltip should clearly describe what will happen when the button is pressed.

Keyboard Shortcuts

Text Buttons

Labeling

Like menu items, Text Button labels should consist of an Action or a Location but not a status. Make sure that a button's label clearly describes what will happen when it is pressed.

"Remove Account", "Transfer to Jim's Laptop", and "Import 20 Songs" are good labels.

"OK", "Get more storage!", and "Low Battery" are not good button labels. The "Get more storage!" label has incorrect capitalization and unnecessary punctuation. The other two labels do not indicate what will happen as a result of clicking the button.

Tooltips

Since Text buttons have a clear and explicit label, it's usually unnecessary to give them a tooltip.

See also:

Back Buttons

A back button is simply a text button with a special style class. It should be used to navigate back to a previous view, typically from a child view to the main view.

The text of the button should be the title of the previous view. If the button will take the user “home,” then “Home” may be an appropriate label; however a more specific label is preferred, such as “All Settings” in System Settings. Avoid just using “Back,” as the back button is visually distinct and going back is already implied by its unique shape. The button should tell the user where it will take them back to.

When using a back button, it is recommended to use a Gtk.Stack to switch between views. This way you get a sliding animation further representing the backwards progression when activating the back button.

Back buttons are typically seen in header bars, but can be used in other contexts as well.

All Tool Buttons should have tooltips, since they do not contain a label. This assists users with disabilities as well as giving a translation for an unrecognized icon. Tooltips should be done in without .

If a button has a related keyboard shortcut that will perform the same action, its tooltip should include the shortcut. See for specifics.

Cancel button

Text Button labels should be done in .
